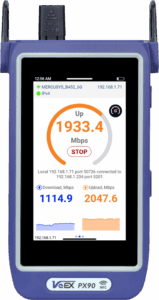

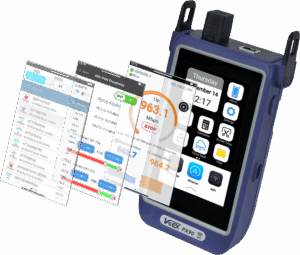

PX90– PON Service Installation Meter
Selective GPON & XGS-PON OPM Internet QoE Validation Wi-Fi Testing
Residential & Business PON Internet Access Services Test Set
Efficient, simple, precise and cost-effective step-by-step validation for GPON and XGS-PON installations. From selective optical power measurements (OPM) to Internet access speed test validation over LAN and Wi-Fi, it provides field technicians with the tools required to quickly validate service speeds and quality of experience (QoE) for residential subscribers.
Key Features
- Simple and complete solution for residential PON services installation, activation and validation
- Terminated filtered Optical Power Meter for GPON and XGS- PON downstream signals
- Supports simultaneous GPON and XGS-PON optical power measurements
- ONT and OLT Pass/Fail thresholds with class selection
- Internet Access Speed Test, with Ookla® Speedtest® and iPerf support
- LAN 1000BASE-T speed tests
- Wi-Fi (802.11a/b/g/n/ac/ax) 2.4 GHz, 5 GHz and 6 GHz scan, coverage verification and speed test
- Intuitive graphical results presentation with easy to read performance metrics
- Supports customized test profiles, to address different types of services and test points
- Supports multiple user profiles for people sharing test sets
Specification Sheet
Platform Highlights
- Optimized for field technicians installing, verifying, troubleshooting and maintaining PON-based Internet Access services
- Robust and ergonomic handheld design for field environments
- Large and bright high-resolution color display for easy viewing
- Fast boot-up time
- Intuitive graphical user interface (GUI)
- Easy to use and responsive capacitive touchscreen with gesture support
- Large internal data storage for test results
- Built-in Wi-Fi connectivity
- Built-in Near Field Communication (NFC) transceiver, compatible with NoApp® cloud service, for immediate test result transfer and sharing
- Cloud-based NoApp service (included) allows for data transfer via mobile phone or Secured and always up to date. No installation or updates required.
- Generate and save test results in HTML file format and export to PDF
- Built-in web access server for remote control access
- USB-C PD interface for charging, memory sticks and LAN adapters
- Rechargeable Li-Ion battery includes a low voltage alarm and an auto-off function, providing one full day of typical operation and testing
