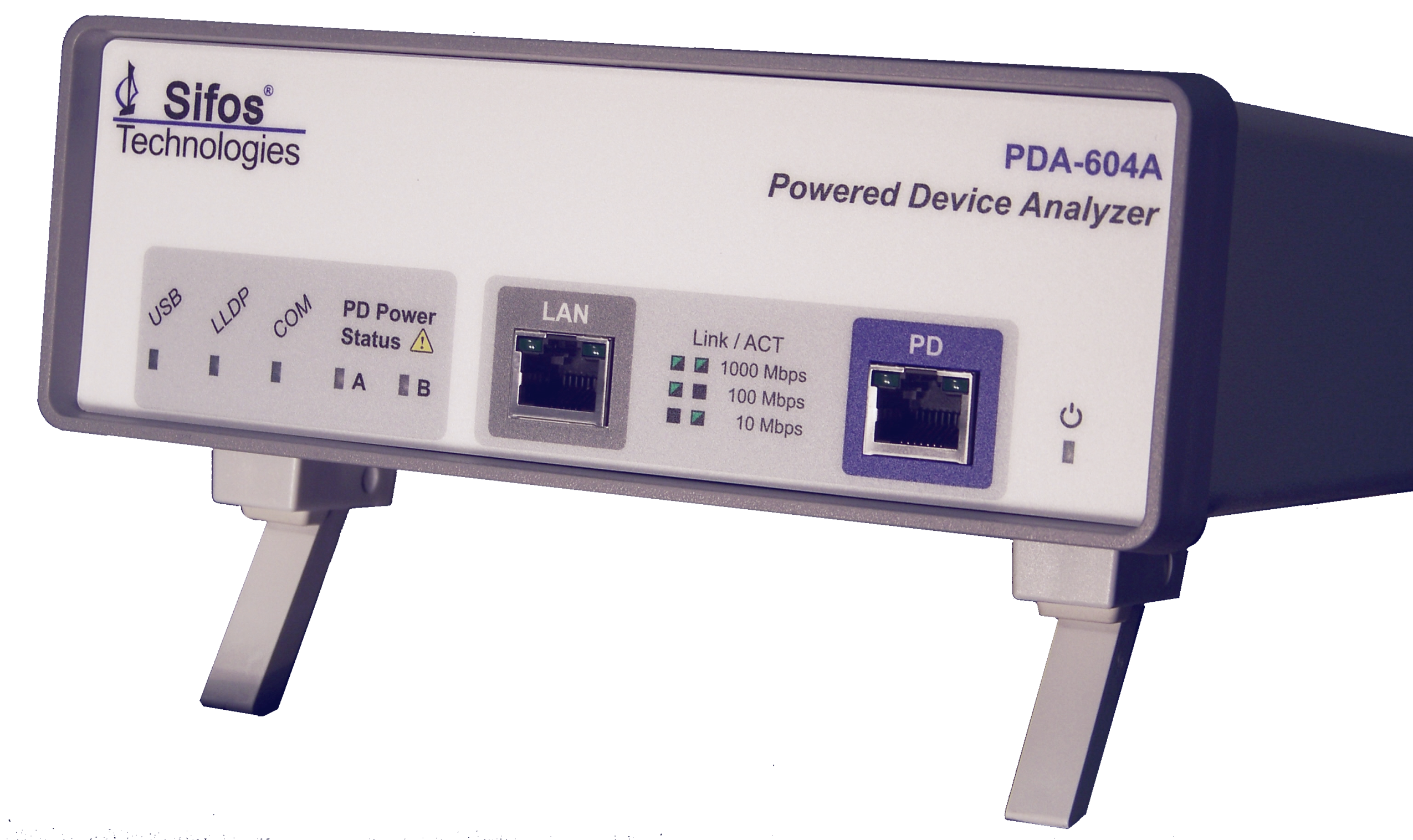

PDA- 604A
Emulate any 802.3at Type-1, Type-2, 802.3bt Type-3, or Type-4 PSE powering 2 or 4 pairs at all possible PD input voltages. Optionally supports 802.3at and 802.3bt Ethernet Powered Device Conformance Test Suites and LLDP Emulation and Analysis.
Key Features
- 4-Pair and 2-Pair Powering and Analysis of All 802.3bt / 802.3at PD’s
- Automated IEEE 802.3bt / 802.3at Powered Device Conformance Testing
- Fully Configurable Classification and 802.3bt / 802.3at Power Grants
- Continuous PD Powering up to 2 Amps at All PD Input Voltages
- Comprehensive Analysis of 802.3bt / 802.3at PD Performance Parameters
- Flexible 802.3bt / 802.3at LLDP Emulation and LLDP Protocol Analysis
- Powerful Metering: Voltage, Current, & Power Sampling at the PD Interface
- Intuitive Graphical User Interface for Rapid Analysis and Testing
- Powerful Script Automation and Binary API Library for Microsoft Windows
- Informative Pop-Up Spreadsheet Reports and Statistics
- Plug’n Play USB Interface to Windows PC’s
- LAN Port for External PD Configuration and Control During Testing
