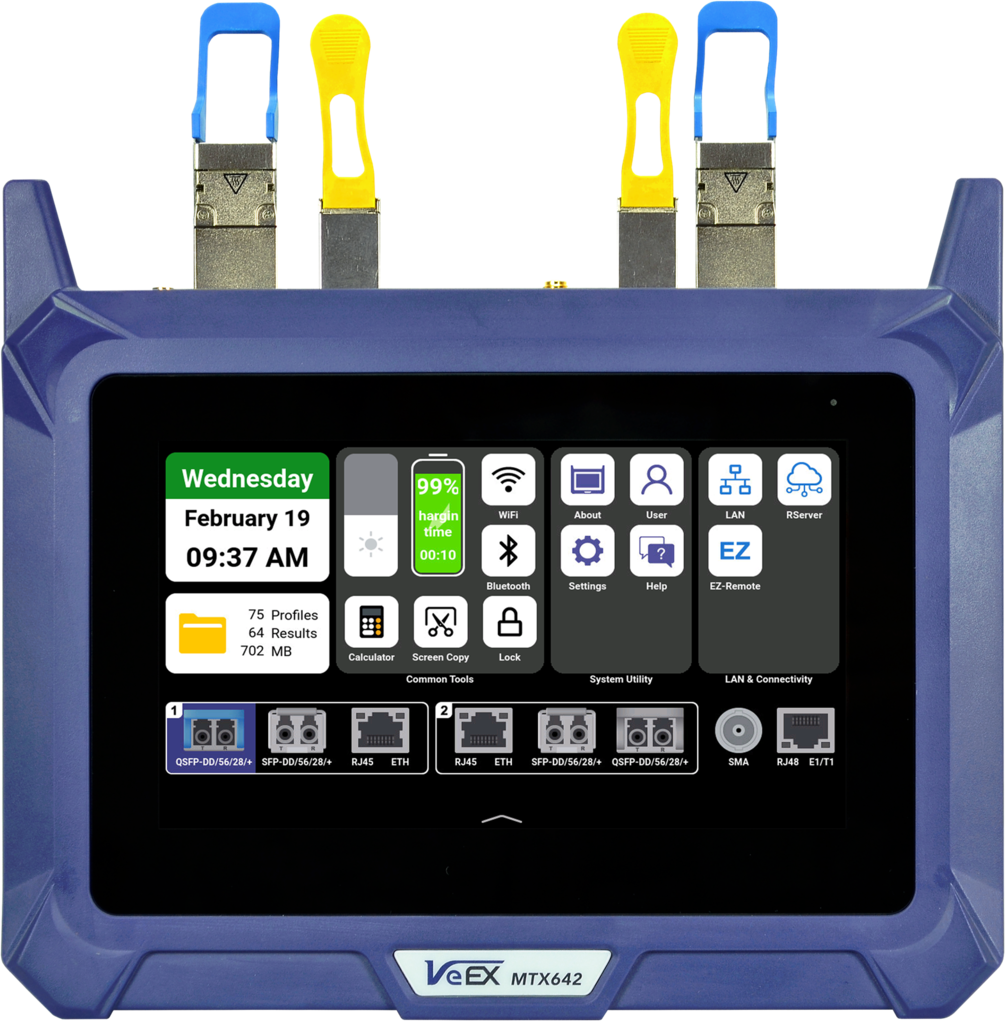

MTX642 High-Speed Dual 400GE Ethernet Test Platform
- Dual 400GE concurrent testing
- Flexible ports — QSFP-DD, QSFP56, QSFP28, SFP-DD, SFP56, SFP28
- dvanced transceiver testing — AOC, DAC, ZR/ZR+
- RJ45 support — 2.5G / 5G / 10GBASE-T & legacy Ethernet
- Capacitive touchscreen with gesture control
- Fast boot-up — ready in under 2 minutes

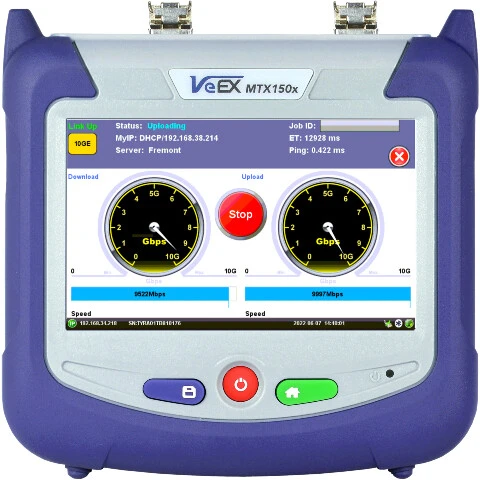

MTX150x 1G/10G Ethernet Services Test Set
- Dual-port testing up to 10 Gbps
- Supports 1G / 2.5G / 5G / 10G & Fibre Channel
- Complete Ethernet Layer 1–4+ testing (RFC2544, Y.1564, QoS/QoE)
- VoIP, TCP, FTP, HTTP performance testing
- SyncE & Wander/Phase measurements
- Lightweight 1.0 kg with >12 hours battery lif
MTX150 – Metro Ethernet & Access Tester
- Installation, verification, troubleshooting, maintenance of Carrier-class Networks, Links and Services
- Transport, Metro, Access, Microwave, Business applications
- Test Applications
- Fibre Channel up to 4G (SFP)
- Ethernet up to 1G (SFP and RJ45)
- OTN/SDH/SONET up to 2.7G (SFP)
- SDH/SONET/PDH/DSn & G.703 Codir, 64k to 155M (RJ48/BNC)
- Datacom (DVI)
- Other Features and Functions
- Interface-oriented Test Port Groups (Test Mode GUI)
- USB/BT OTDR (OPX-BOXe), Fiber Scope, OPM, Web Browser
- Connectivity: Wi-Fi, Bluetooth, LAN, 3G, WiFi InSSIDer, Remote Control,…
- High resolution Color LCD with Touch Screen

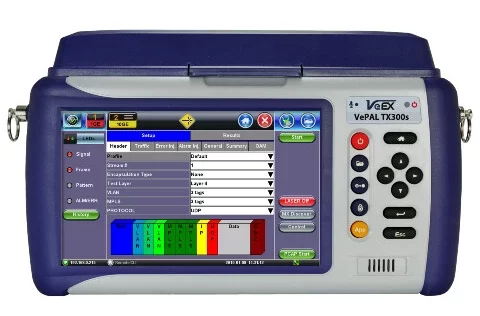

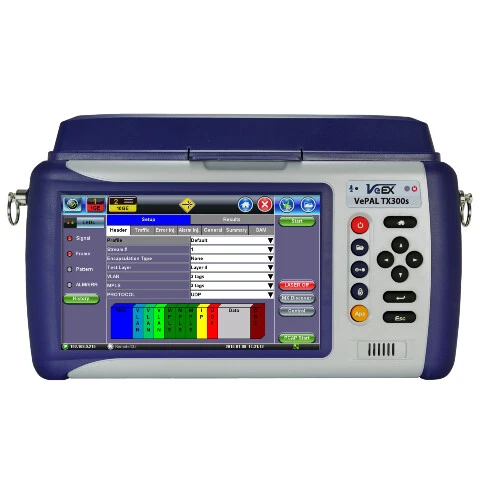

TX300s Family- All-in-one, T1/E1 to 100G
- All-in-One hardware platform reduces Capex
- The VeExpress ecosystem allows users to Buy, Rent, Lease-to-own and share test feature licenses
- Optimized for field engineers or technicians installing and maintaining OTN, SDH/SONET, Carrier Ethernet, Fibre Channel, CPRI/OBSAI and Fiber Optics networks transporting legacy and next generation services
- Flexible Software platform allows for multiple test applications running simultaneously
- GPS Receiver and built-in Atomic Clock reference options for frequency, phase and delay measurements
- Available in Single or Dual module versions and optional factory-installed OTDR
- Test set connectivity via Ethernet Management interface, Wi-Fi, Bluetooth®, or Data Card for back office applications and workflow optimization
- User defined test profiles and thresholds
- Fast and efficient test result transfer to USB memory stick
- Interchangeable Li-ion battery pack extends field testing time
- Asset Management: Maintain instrument software, manage test configurations, process measurement results and generate customer test reports using VeExpress
