MTX90
NEW
Multi-Gigabit Internet Services, Ethernet Speed & Wi-Fi Test Solution

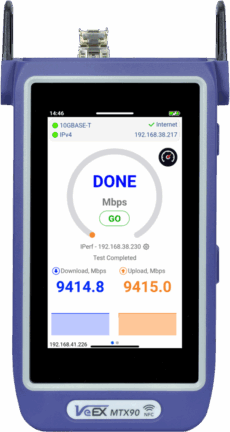

The MTX90 is an optimized Quality of Experience (QoE) test solution (Layer 4+ applications) for multi-Gigabit services from 10 Mbps to 10 Gbps, with native support for 2.5G, 5G, and 10GBASE-T on copper RJ45 and fiber SFP+ interfaces. It supports PON ONT emulation via SFP+, provides QoE validation using Speedtest and V-PERF, and enables Wi-Fi performance verification. It equips field technicians with the tools to quickly validate service speeds for residential and business subscribers.
HIGHLIGHTS
KEY FEATURES
RESOURCES
HIGHLIGHTS
- Optimized for field technicians installing, verifying, troubleshooting and maintaining high-speed Residential and Business services
- Simple and intuitive user interface (GUI)
- Flow® for efficient testing and report compilation process
- NoApp® QR code capability for faster result transfer
- Built-in Near Field Communication (NFC) transceiver, compatible with NoApp® cloud service, for immediate test results transfer and sharing
- Generate and save test results locally in HTML file format and export to PDF
- Streamline report management and data transfer with R-Server integration for workflows and results sharing
- Large internal data storage for test results
- User defined test profiles and thresholds enable fast, efficient and consistent turn-up of services
- USB-C PD interface for charging, memory sticks and LAN adapters
- Remote access/control via web browser and VNC® client; compatible with VeEX EZ Remote collaboration services
- Field upgradeable using USB stick
- Fast boot up time (14 seconds)
- Rechargeable Li-Ion battery includes a low voltage alarm and auto- off function, providing one full day of typical operation and testing
- High resolution 5-inch color capacitive touch screen with gesture support
- Rugged, compact and ergonomic handheld design for demanding field environments
KEY FEATURES

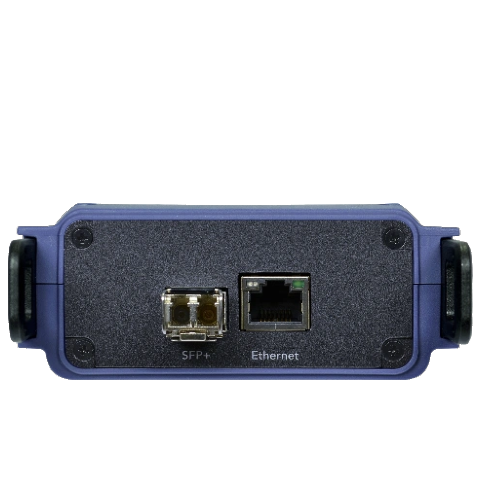

- SFP+ test interface for 1000BASE-X and 10GBASE-R
- Built-in RJ45 port with PHY for 10/100/1000BASE-T, 2.5GBASE-T, 5GBASE-T, 10GBASE-T (no adapters required)
- Automatic IP acquisition via DHCP
- PoE detection
Ethernet
- IPv4/IPv6 and PPPoE, DHCP and static IP
- Ping

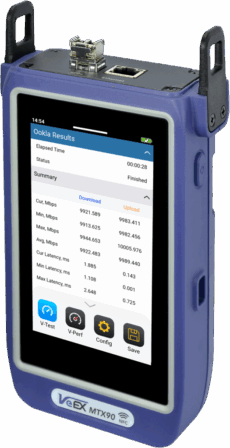

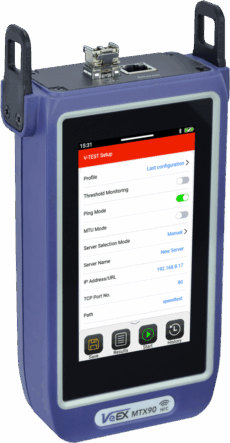

- Complete Layer 4+ test suite: V-TEST (Ookla® Speedtest®, VeEX Managed and Manual Modes), V-PERF (RFC6349)
- PON ONT emulation via SFP+ test interface
- PPPoE support
Wi-Fi Testing
- IPv4/IPv6, DHCP, and static IP
- Complete Layer 4+ test suite: V-TEST (Ookla® Speedtest®), V-PERF (RFC6349)
- Wi-Fi (802.11 a/b/g/n/ac/ax) 2.4 GHz, 5 GHz and 6 GHz scan, coverage verification and speed test up to 2 Gbit/s
