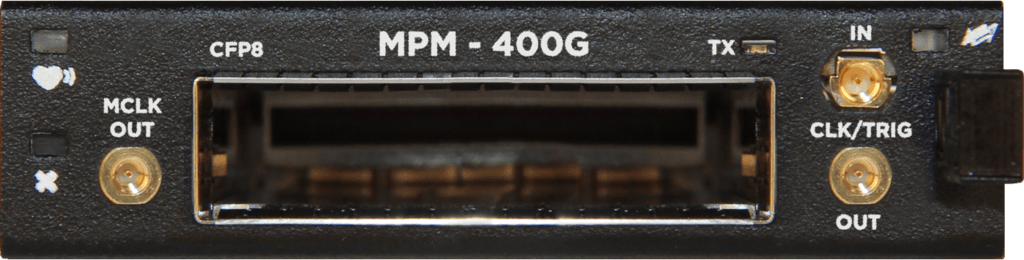

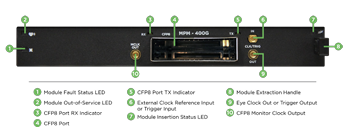

MPM-400G
400G CFP8 Multi-Protocol Module
This advanced module provides up to 800G of throughput to address the high capacity testing demands of the next generation PAM4 Ethernet/transport market.
Supporting 2x simultaneous and independent 400G QSFP-DD ports along with 2x QSFP56 and SFP56 ports the MPM-400AR module delivers both convenient and flexible testing capabilities for a wide range of optical transceivers, port and data rates all in the same module.
Module Highlights
- 400G test module with native support for 400G CFP8 pluggable optics
- 400G Ethernet testing per IEEE 3bs (16 x 26.5625G/425G) with RS (544, 514) KP4 Forward Error Correction (FEC)
- Provides all the necessary features to test CFP8 modules and the 400GE data pipe
- Advanced and flexible FPGA based test module provides future proof hardware support for emerging standards
- The advanced pluggable hardware module supports can operate in parallel with other additional test modules.

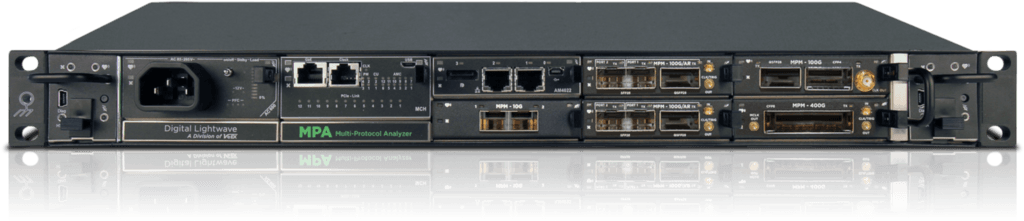

- 1U MPA chassis supports up to 2x MPM-400G test modules plus additional test modules
Applications
- Comprehensive 400GE test applications for layers 1-4
- Full rate 400GE BERT, throughput and frame loss measurements
- PCS & RS-FEC layer testing with skew generation and analysis
- Service disruption time measurement
- CDAUI-16 16x25G signal integrity testing with multi-lane unframed BERT
- High speed lane clock stressing/analysis and optical power level verification
CFP8 Interface
- Native support for 400G CFP8 modules
- Supports any MSA and IEEE 802.3bs compliant CFP8 module
- Supports CDAUI-16 (16x25G) electrical interface to CFP8
