Supported Test Module Options

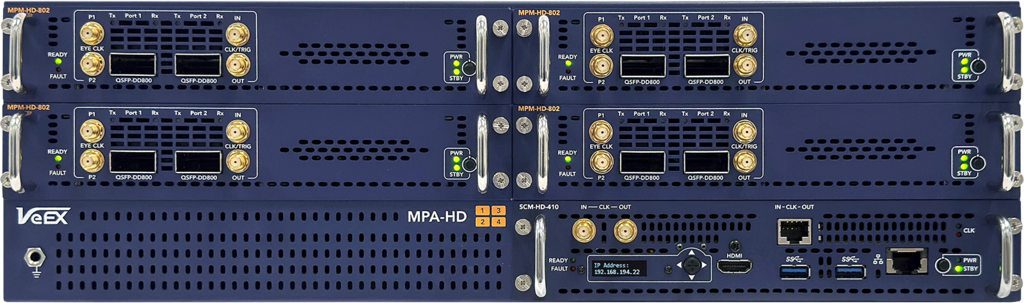

MPA-HD®
High Density Test System
Advanced traffic generation and analysis platform specifically designed for the demands of R&D, SVT, and manufacturing testing environments.
Platform Highlights
- Common HTML5 Web UI, Python API and SCPI CLI as the 1U MPA platform for seamless integration into the testing environment
- Specifically designed for multi-port 800G and future high powered testing applications
- 3U x 19” benchtop or rack mounted operation with mounting ears
- Modular design, supports 4x pluggable test modules
- Modern and very efficient front-to-back cooling system with field serviceable fans
- Single or dual pluggable 90-140VAC / 180-240VAC power supply units (PSU) with load sharing and redundancy options
- Power consumption: 2x MPM-HD-802 test modules @ <1,000W typical, 4x MPM-HD-802 test modules @ <1,600W typical; The chassis itself can support >3.5kW
Supported Modules

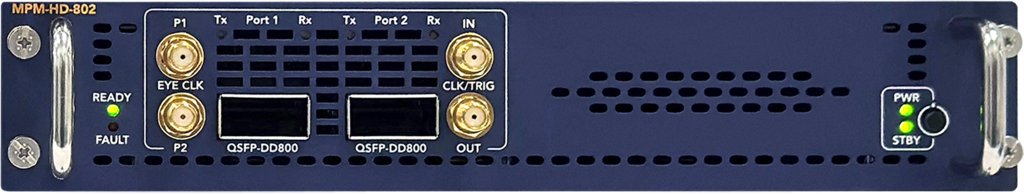

MPM-HD-802
Dual 800G QSFP-DD800 test ports – also supports QSFP112, QSFP- DD, QSFP56, QSFP28, AOC, DAC & AEC
Applications
- Dual 800GE ETC/IEEE 800GAUI-8 for QSFP-DD800G module testing
- Dual 400GE 400GAUI-8 for QSFP-DD module testing
- Dual 400GE 400GAUI-4 for QSFP112 module testing
- 100GE and breakout applications coming soon
- L1, L2, L3 test applications including FEC, traffic and BERT generation and analysis
- Comprehensive support for high power coherent ZR and OpenZR+ plugs >30W each
