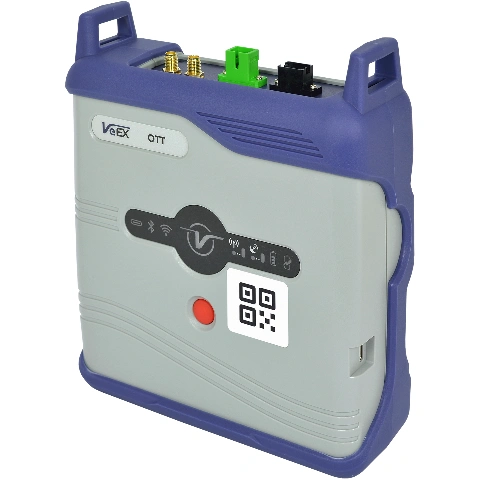

OTT-Optical Test Tool for Fiber Construction and Maintenance

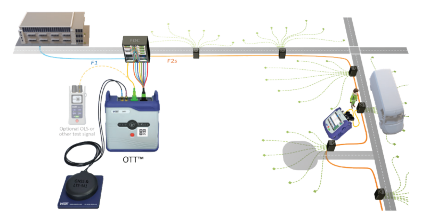

The patent-pending OTT is an innovative test solution that enhances workflow efficiency for field operations at fiber distribution cabinets. Field technicians can remotely switch between up to 16 or 32 distribution fibers to the desired Fiber Serving Terminal (FST) using simple text commands. This facilitates accurate power measurements on individual ports, eliminating time-consuming trips back to the fiber distribution cabinet, thereby boosting productivity and reducing operational costs across various testing scenarios.
Platform Highlights
- Intuitive LEDs indicating signal and power levels
- Simple control and operation save time on the job
- IoT enabled communication
- Quick and easy connection to the OTT via QR Code

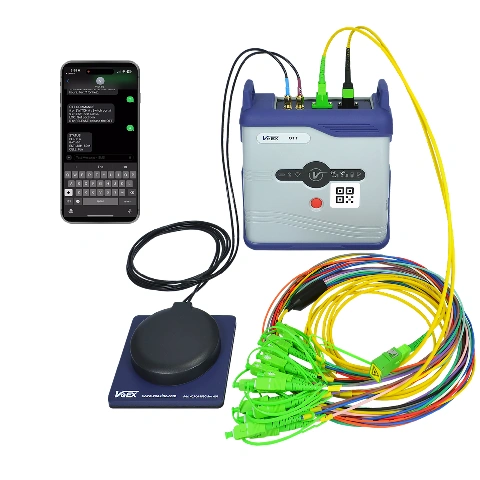

- Remote control via mobile device
- No software, apps or configurations required
- Handheld, lightweight rugged design
- Supports 1m drop to concrete on all sides
- Splash and dust resistant design

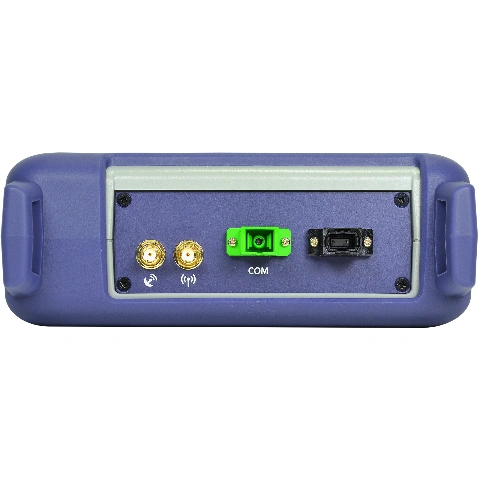

- Standard USB-C port
- Long lasting battery >24h
Key Features
- 1×16 or 1×32 port optical switch
- One input port for external optical source
- Up to two output MPO fan-out cables
- Low insertion loss
- Fast switching time, <1 sec
- Geo-tagging with built-in GNSS receiver
- Combined cellular and GNSS antenna
