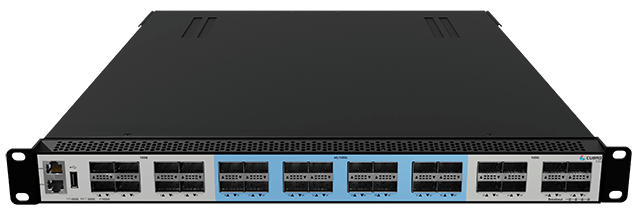

Aggregator C32
The Aggregator C32 is a high-performance network packet broker that aggregates, filters, duplicates, load balances network traffic to security, monitoring and management tools based on 4000 possible rules. The Aggregator C32 supports OSI Layer 2, Layer 3 and Layer 4 header modifications including stripping, adding, and modifying VLAN tags, MAC addresses, IP addresses and Port numbers.
The high port density, session-aware load balancing, and thousands of filtering rules at the users disposal combine to make the Aggregator C32 a device which can support large amounts of monitoring and security appliances and the unique architecture of the device means that performance is never compromised regardless of complexity and features used.
Main Features of Aggregator C32
- Filters and load-balances traffic from 10, 25, 40, or 100 Gbps links to multiple monitoring tools
- Aggregates multiple 10 and 25 Gbps links to 40, or 100 Gbps monitoring tools
- 16 x 40/100 Gbps (QSFP/QSFP28) with break-out to 4 x 10G/25G
- 16 x 40/100 Gbps (QSFP/QSFP28)
- Up to 4000 parallel rules
- IPv6 support
- No additional port licensing fees or software feature licensing. All features and applications included in the unit price.
- 2-year base warranty period
Functions & Benefits of Aggregator C32
- 100G Aggregation (n:1, 1:n; n:n)
- Easy to configure via secure Web GUI, CLI and REST API
- Load balancing: L2 / L3 / L4 hash-based, session aware load balancing
- Filtering on multiple parameters up to including VLAN tags, IP addresses and TCP / UDP port numbers and much more.
- Header Modification of OSI Layer 2 to 4
- SNMPv2c and SNMPv3 support
